Jrrxm 24 Volt Rs775 High-speed Motor Gearbox For Power Wheels Motor Upgrade,18v-24v High Torque Fast 775 Dc Motors For Kids Ride On Car
Electric Vehicles Replacement Parts
USD $26.89
Condition : NEW
Free Shipping
{{variant_type_name}} :
Notify me when the price drops
We will email you if we find a lower price on this product!
- W5-30 RS775 24 Volt 280 Wat Drive Engine With Gear Box For Power Wheel Motor Upgrade 18V.Ultra High Power and Torque Require Matching with Control box of 40A or Above and Fuse of 25A or Above, Otherwise there is Risk of Damaging the Capacitor
- 18V DC Motor Engine for Power Wheel Ride On Cars Upgrade. When 24V Power Supply, Power is 280W, And the Gearbox Outputs 360RPM Per Minute. When 18V Power Supply, The Power is 200W, And the Gearbox Outputs 270RPM Per Minute. When 12V Power Supply, The Gearbox Outputs 180RPM Per Minute.（）

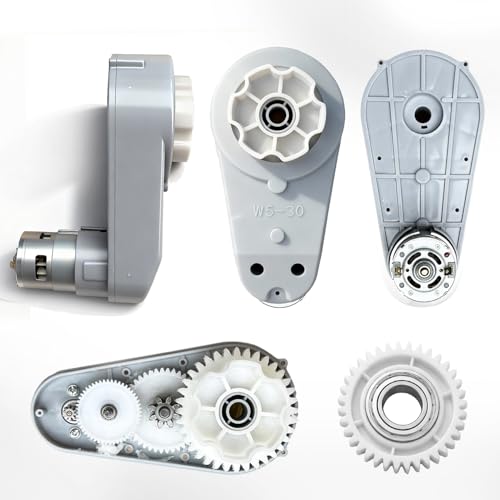

- The GearBox Shell Uses High-Strength Composite Materials, Which Are Not Deformed and Stronger. Both the Small and Large Gears Have Built-in Bearings to Reduce Friction and Improve Service Life. The Middle Gear Adopts Metal Gear
- The Gearbox Speed Ratio Is 1:75, The High Speed Ratio Makes The Output Higher Speed.The Motor Power Is 280W, And The High-Power Motor Guarantees A Higher Torque Output.
- Please Carefully Compare The Size of Original Motor Gearbox，Shaft Hole Diameter: 12mm (0.47"); Length: 185mm(7.28") Max Width: 92mm(3.62"); Motor Diameter: 40mm(1.574"),One-Click Installation Wires,Item Is Easy To Replace And Is For Kids Ride On Cars,It Is Suitable For Replacing The Gearbox With 6 Plum Blossoms
- It is Designed To Be Used With 24V Battery. If Your Toy Car Is 12V, It Can Also Be Used With 12V Battery, But The Speed Will Be Reduced By Half. Due To The Design Of The Gearbox, It Will Still Provide A Very Fast Speed.
- The Installation Holes for the Motor Gearbox of this Motor will be Larger than Those of RS550 (Due to the Larger Diameter of the Motor). Please Carefully Measure all Dimensional Data before Purchasing to Ensure a Perfect Installation.
- Please note: Do not use power sources above 24V; The RS775 motor of this model is larger in size than the regular RS550 motor; The motor is installed as a single unit, but there is no need to distinguish between the left and right sides. If there is a steering error, simply change the order of the cables on the motor.
- Size: Large
